Overview

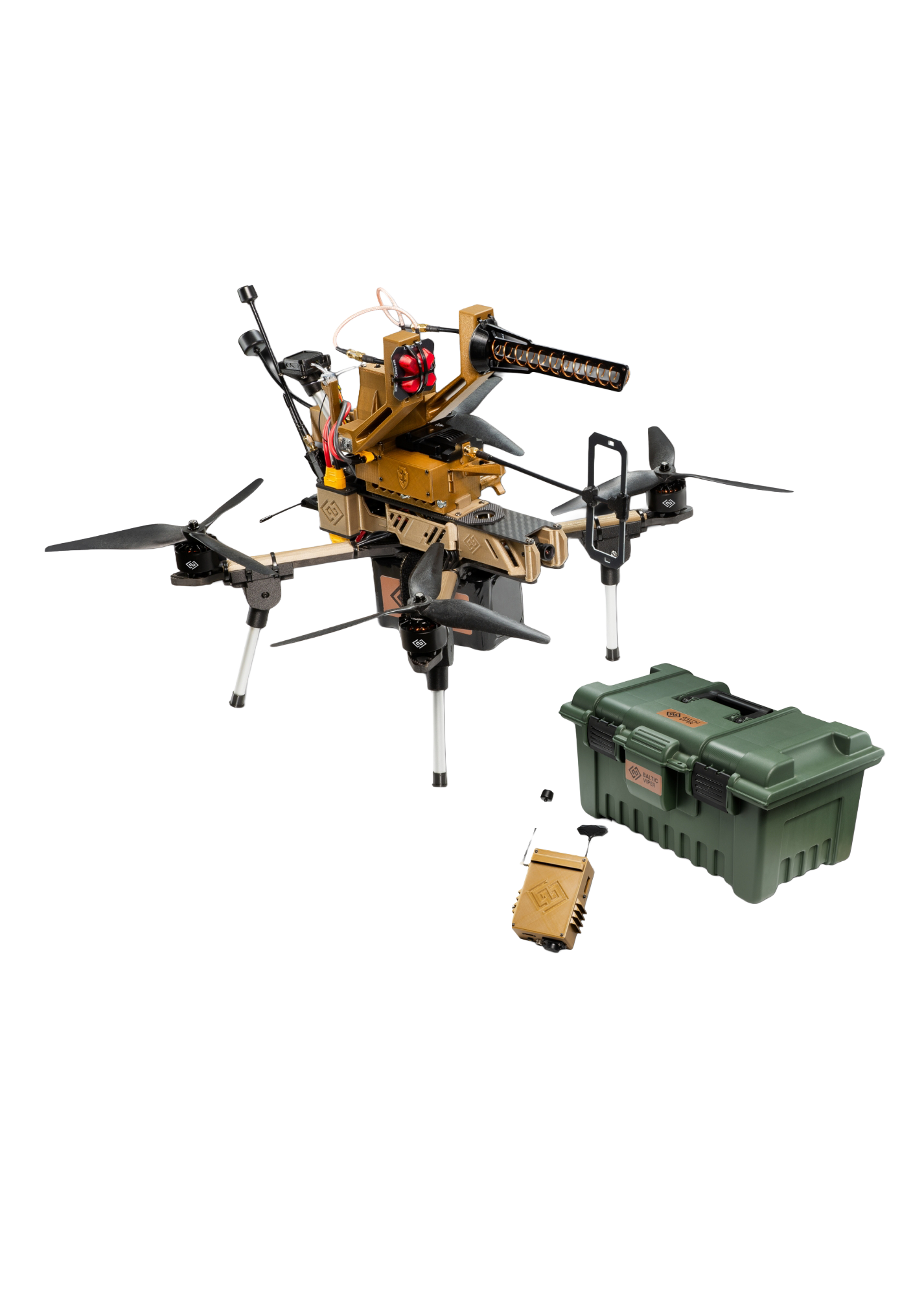

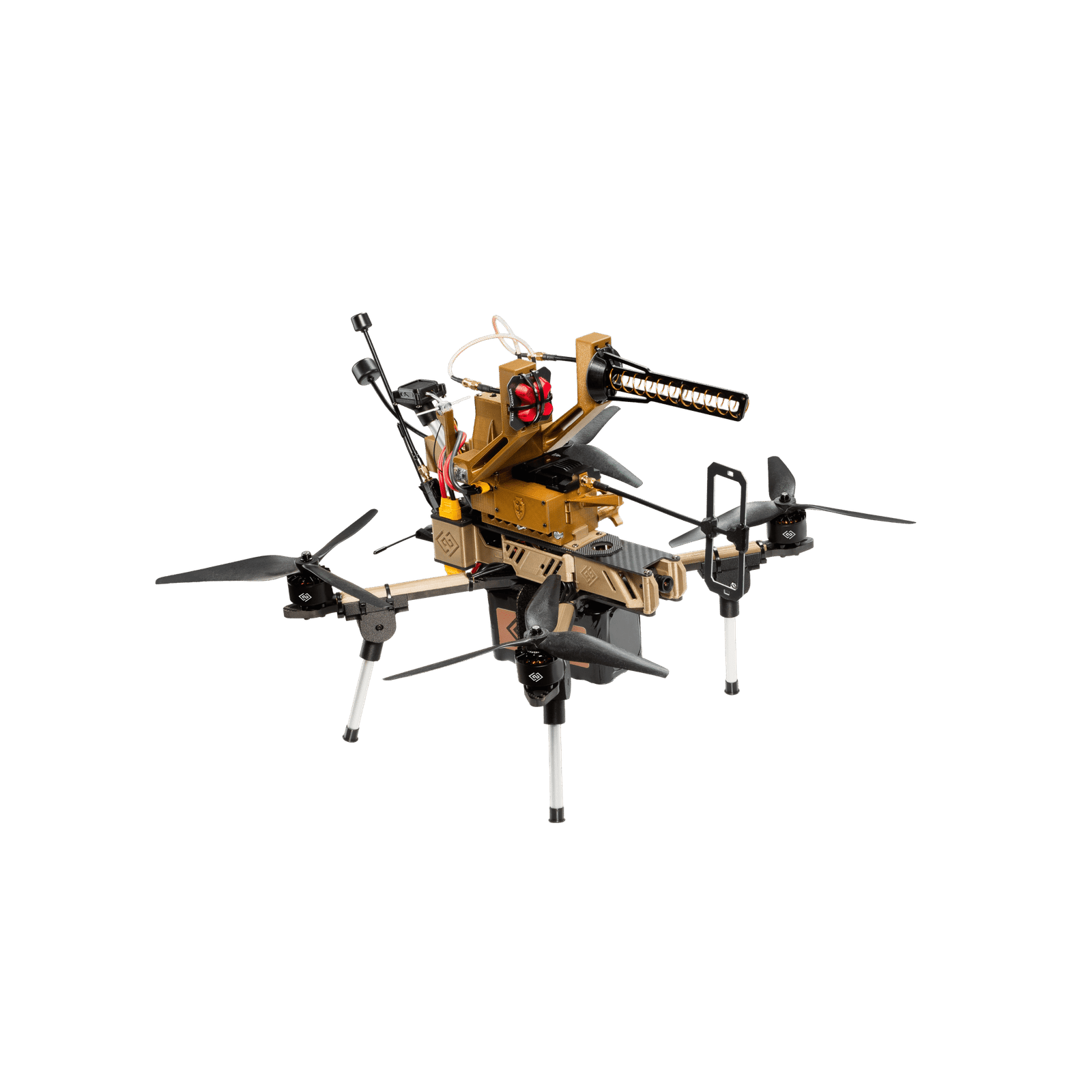

The VIPER RELAY carrier is based on the combat-proven VIPER 10 strike drone model. Designed for autonomous and stable hovering while carrying the relay system. Due to its size, efficiency and autonomous hovering and flight capabilities, it is well-suited for tactical-level FPV relay operations.The VIPER RELAY is a tactical signal bridge designed for complex topography. It maintains C2 link integrity in environments where traditional GCS range is limited by terrain, providing a decisive NLOS communication solution for forested, mountainous, and urban operations.
Maximum distance for retransmission
(km)20
Maximum endurance time of fully equipped system
(min.)30
Video transmitter power output
(W)3
Specs
Technical Characteristics & System Specifications
Tactical-grade communication platform parameters validated for non-line-of-sight (NLOS) missions.
Get in touch- Power usage (Maximum transmitting power) 1A at 24V
- Weight (excluding carrier & optional battery) 420 g
- Receiving video antenna gain 14 dBi
- Video receiver sensitivity -100 dBm
- Autonomy GNSS based; Visual-inertial navigation (optional)
- In-flight video kill-switch Yes
- Battery configuration 6S3P 15000mAh, up to 2 pcs
- Additional features Picatinny mounting; Foldable carrier landing legs
The Viper
Tactical Signal Routing & Electronic Warfare Resilience
EW-Resilient Command & Control
Standard configuration utilizes an 868MHz ELRS diversity receiver. Optional integration includes an EW-resilient 300MHz–3.3GHz C2 link, featuring frequency-agile ELRS and integrated diversity.
Wideband Video Retransmission
Equipped with a 5.8 GHz 3W LHCP polarized system. For specialized operational requirements, alternative 3.0–7.2 GHz spectrum transmitter options are fully available.
Platform Hardware & Low-Light Optics
The hardware stack is integrated onto a 10" FPV frame powered by an H7-based flight controller and a 70A ESC. For low-light and night operations, the platform features a high-sensitivity Starlight camera.
Secure your tactical communication network with the Viper Relay
Contact us for custom integration solutions, procurement options, or expert consultation on seamlessly incorporating the Viper Relay into your operations.
